Product Details

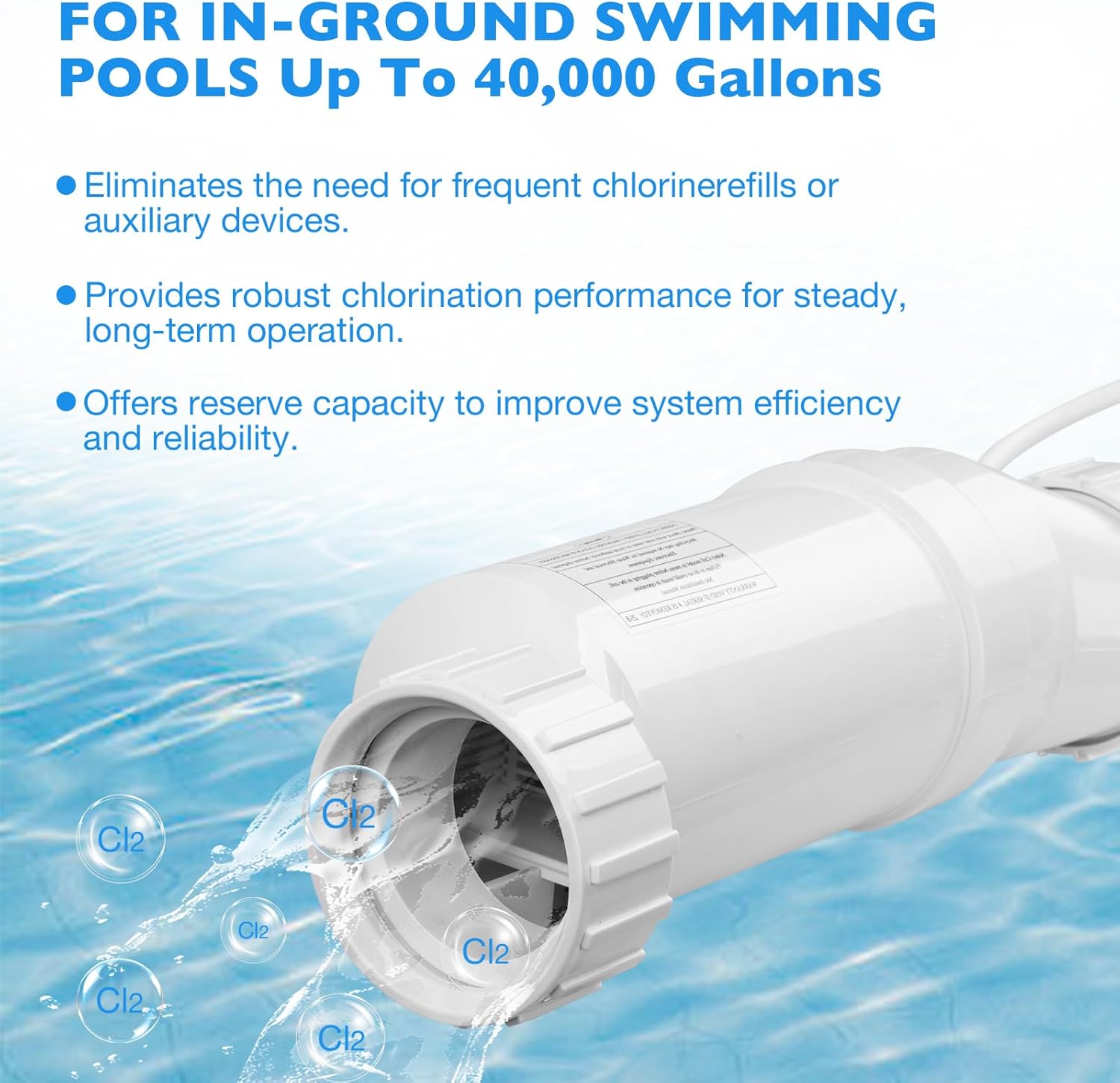

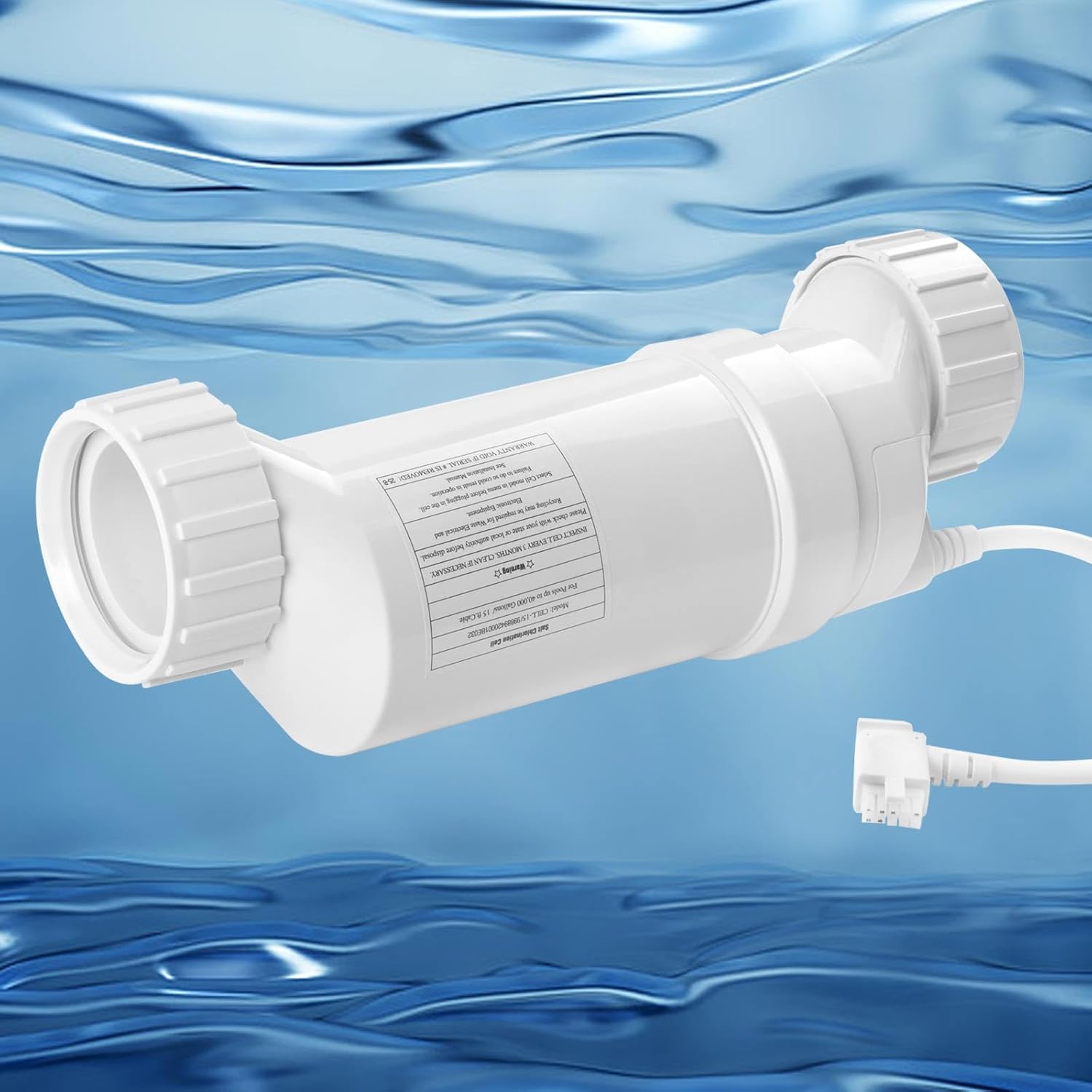

- Product Type: T-15 replacement salt cell for compatible salt chlorine generator systems
- Pool Compatibility: In-ground swimming pools up to 40,000 gallons
- Compatible Replacement Models: W3T-CELL-15, GLX-CELL-15-W, TCELL940, T-CELL-15, T-CELL-15-SWP
- Compatible Systems: AquaRite, AquaRite Pro, AquaTrol, AquaPlus, ProLogic, OmniLogic, OmniHub, SwimPure Plus, TurboCell and other compatible systems
- Cable Length: 13.5 ft extended cable
- Union Size: Designed for standard 2-inch union connections
- Package Includes: 1 T-15 salt cell, 2 sealing gaskets, and 1 cleaning tool
- Item Weight: 2.44 kg
- Product Dimensions: 13.5 x 7.5 x 7.5 inches
- Item Model Number: A3409
- Use Type: Replacement cell for salt chlorination systems
- Warranty: 1-year warranty, if confirmed by supplier before publishing
Compatibility Guide
This cell is a suitable option for buyers looking for a salt cell replacement for compatible Hayward-style T-15 systems. It is built to fit many AquaRite, AquaTrol, AquaPlus, ProLogic, OmniLogic, OmniHub, SwimPure Plus, and TurboCell setups, but compatibility should always be checked with the existing control panel and cell label before purchase.
For best fit, compare your current model number with W3T-CELL-15, GLX-CELL-15-W, TCELL940, T-CELL-15, or T-CELL-15-SWP. If your system is set for a different cell size, update or confirm the control box setting before using this T-15 salt cell for 40,000 gallon pools.
Installation Notes
This replacement cell is designed for simple inline installation with standard 2-inch unions. Turn off the pool pump and power supply before removing the old cell, then check the flow direction, gasket position, and union tightness before restarting the system.
A proper Hayward salt cell union fit is important because loose fittings, damaged gaskets, or incorrect alignment can cause leaks or flow issues. After installation, inspect the cell area for water leaks and confirm that the control panel recognizes the cell correctly.
Pool Use and Performance

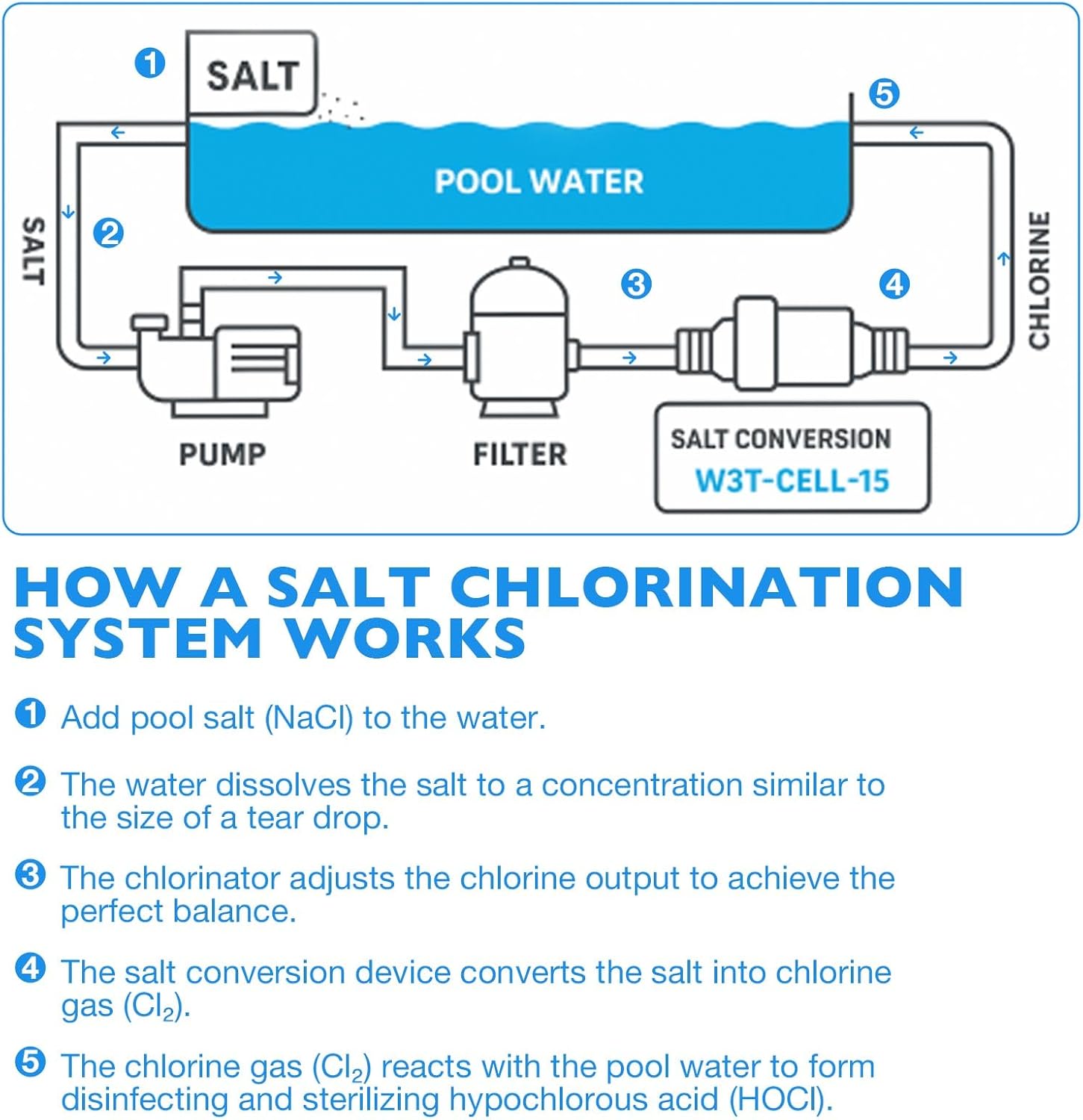

When paired with the correct control system and salt level, this cell helps your salt water chlorinator produce chlorine automatically during regular pool circulation. It is intended to help maintain cleaner water with less manual chlorine handling, but normal water testing and balancing are still required.
Keep pool salt, stabilizer, pH, and chlorine levels within the range recommended by your pool system manual. If chlorine output seems low, check salt level, water temperature, flow rate, cell cleanliness, and control box error messages before replacing additional parts.
Maintenance Tips
Inspect the cell regularly for calcium scale, debris, or buildup on the plates. Clean only when needed and follow the manufacturer’s cleaning instructions, because over-cleaning can reduce the working life of a salt cell.
A compatible salt cell wrench can help remove and reinstall the cell unions without forcing the fittings. Always make sure the power is off before maintenance, and never use sharp tools inside the cell plates.
Package and Buyer Checkpoints
The package is expected to include the T-15 salt cell, two sealing gaskets, and one cleaning tool. Before installation, check that the cable, unions, gaskets, label, and cell body match the product images and your existing pool system.
This product is best for buyers replacing a compatible T-15 style salt cell, not for buyers who need a full salt chlorine generator control box, power center, or complete conversion kit.
