EXCELFU Flow Switch for Hayward Goldline Salt System, Flow Sensor for Hayward Salt Cell and Chlorine Generator System, Flow Switch Assembly GLX-FLO-RP with Tee for Hayward Aqua Rite, Swimpure Plus

The EXCELFU Flow Switch with Tee is a replacement flow sensor assembly for compatible Hayward Goldline salt chlorine generator systems. It helps the control unit confirm proper water flow before chlorine production starts, which can help prevent operation when water movement is too low.

This part is useful when your salt system shows a “no flow” warning, gives inconsistent flow readings, or has a damaged flow switch, cable, or tee housing. Before ordering, match the model style, tee connection, cable length, phone jack plug, and system compatibility with your existing setup.

Description

Product Details

Product type: Flow switch assembly with tee
Compatible replacement style: GLX-FLO-RP flow switch assembly
Main use: Water flow detection for compatible salt chlorine generator systems
Package dimensions: 6.3 x 4.06 x 3.43 inches
Item weight: 9.1 ounces

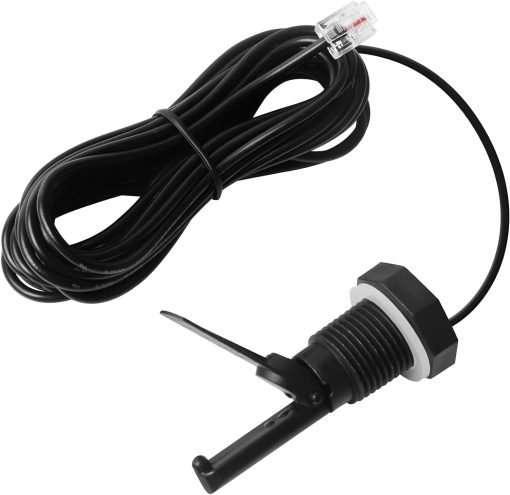

Cable type: 15-foot phone jack cable

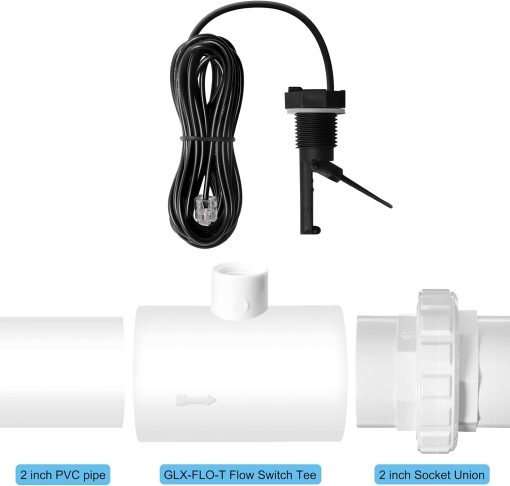

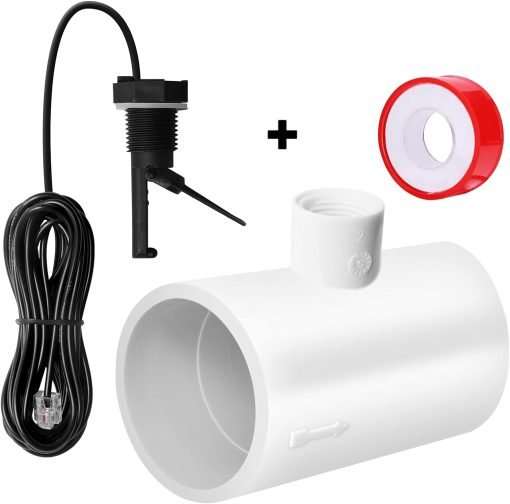

Package includes: Flow switch, tee housing, and sealant tape

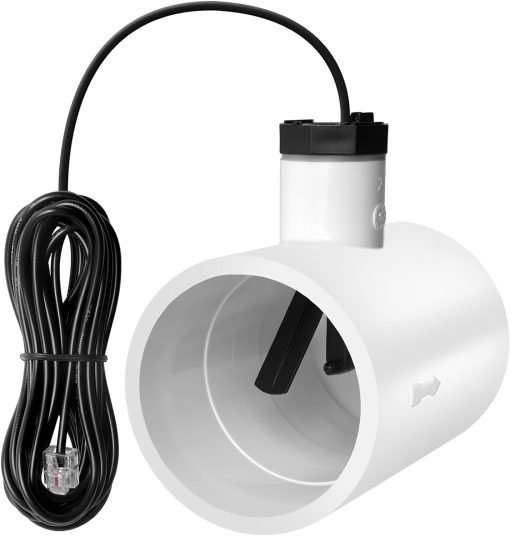

Installation style: Screws into the tee housing and plugs into the control board connection

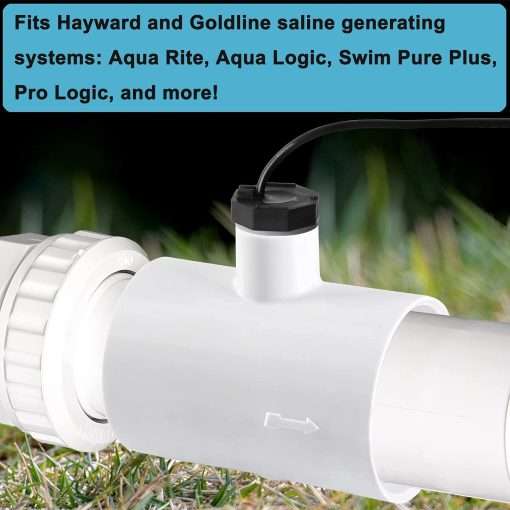

Compatible system types: Select Hayward Goldline, AquaRite, Aqua Rite Pro, ProLogic, AquaPlus, SwimPure Plus, Mineral Springs, and related salt systems
Fit note: Confirm connector type, tee size, and system model before purchase

Compatibility and Fit

This flow switch assembly is made for compatible Hayward Goldline salt systems that use a GLX-FLO-RP style flow sensor. It may fit systems such as AquaRite, Aqua Rite Pro, ProLogic, AquaPlus, SwimPure Plus, Mineral Springs, and other listed compatible salt chlorine generator models.

For buyers comparing similar replacement sensors, the EXCELFU Flow Switch for Hayward Goldline Salt Chlorine Generator System can be reviewed as another related flow sensor option.

Flow Switch Function

The flow switch monitors whether enough water is moving through the salt system. When the pump is running and water flow is correct, the switch helps the salt chlorine generator operate normally. When water flow is too low, the system may stop chlorine output and display a no-flow warning.

If you are also checking other Hayward-compatible sensor parts, the Briidea Flow Sensor with Tee may be useful for comparing another flow sensor replacement with tee housing.

Installation Guidance

Install the flow switch in the correct water-flow direction shown on the tee housing or product marking. The sensor should be threaded securely into the tee, and the cable should be routed safely to the controller without pulling, pinching, or sharp bends.

If your salt system uses a straight pipe placeholder instead of a working cell during service, the Hayward GLX-CELL-PIPE Turbo Cell Straight Pipe Placeholder can be checked as a related replacement part.

Before Buying

Before ordering, confirm that your existing salt system uses the GLX-FLO-RP style switch, that the 15-foot cable is long enough for your setup, and that the phone jack connector matches your control board. Also check whether your current tee housing is damaged or reusable.

For above-ground pool owners using a complete Hayward salt system, the Hayward W3AQ-TROL-HP AquaTrol Above-Ground Pool Salt Chlorination System can be reviewed for system-level compatibility reference.

Maintenance and Troubleshooting

If the no-flow message remains after installation, check the pool pump, filter pressure, water level, plumbing direction, valves, cable connection, and control panel settings. A dirty filter, closed valve, air leak, or weak pump flow can also cause flow warnings even when the switch is new.

For systems using return jet fittings, the Hayward W3AQ-TROL-RJ-TL AquaTrol Salt Chlorination System can be reviewed as a related Hayward above-ground salt chlorination setup.
