Product Details

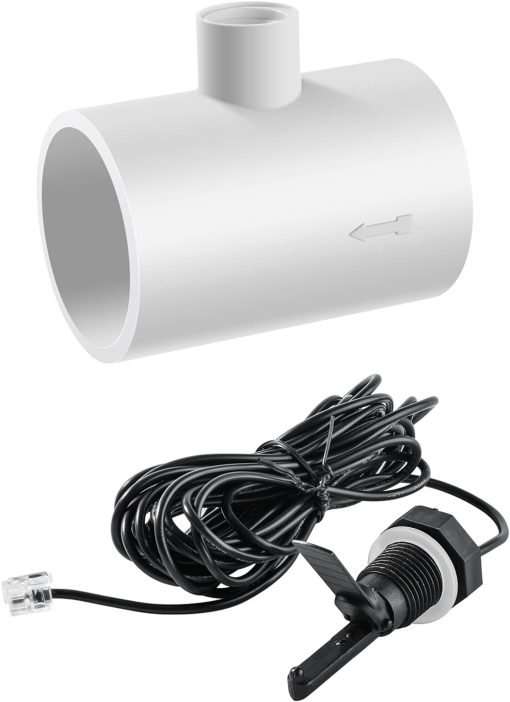

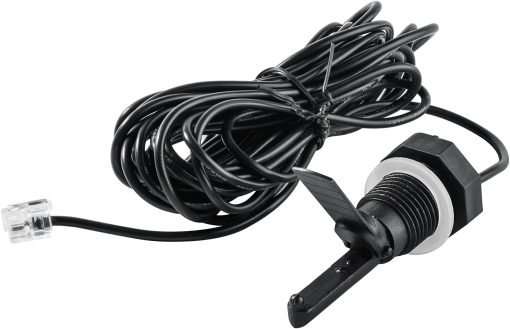

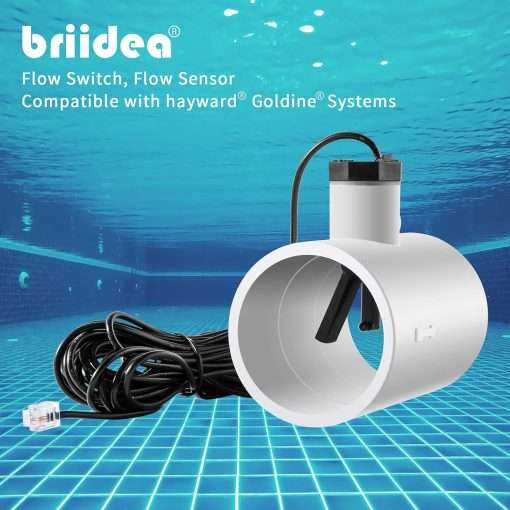

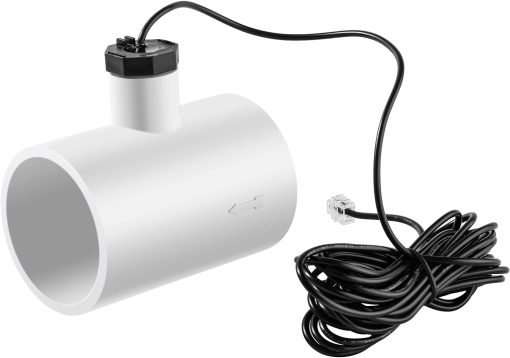

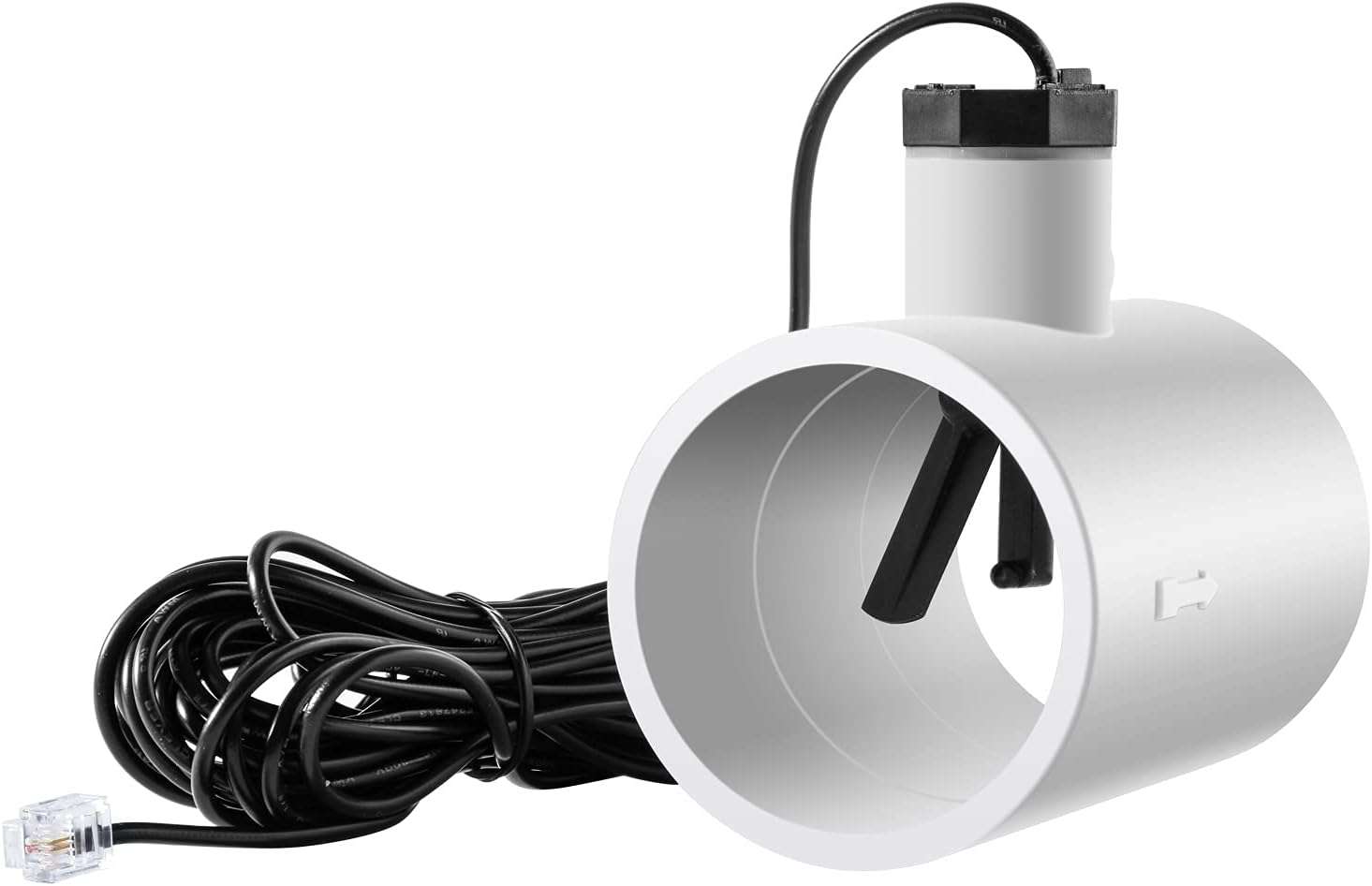

- Product name: Briidea Flow Sensor with Tee for Hayward Salt System
- Product type: Flow switch / flow sensor with tee

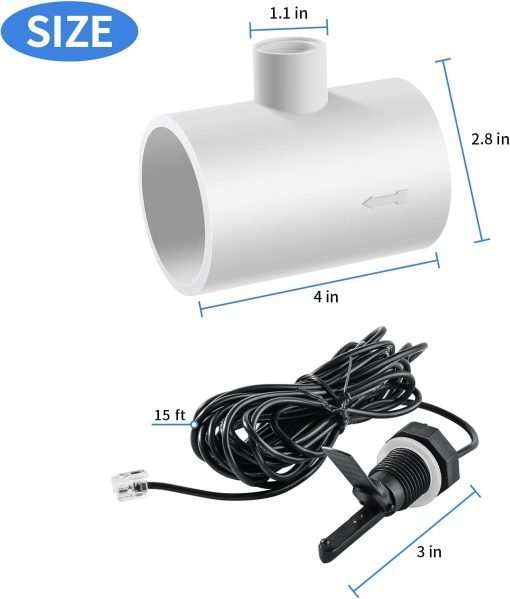

- Package dimensions listed: 5.63 x 4.53 x 3.19 inches
- Item weight listed: 0.01 ounces
- Compatible system type: Hayward Goldline-style salt chlorine generator systems

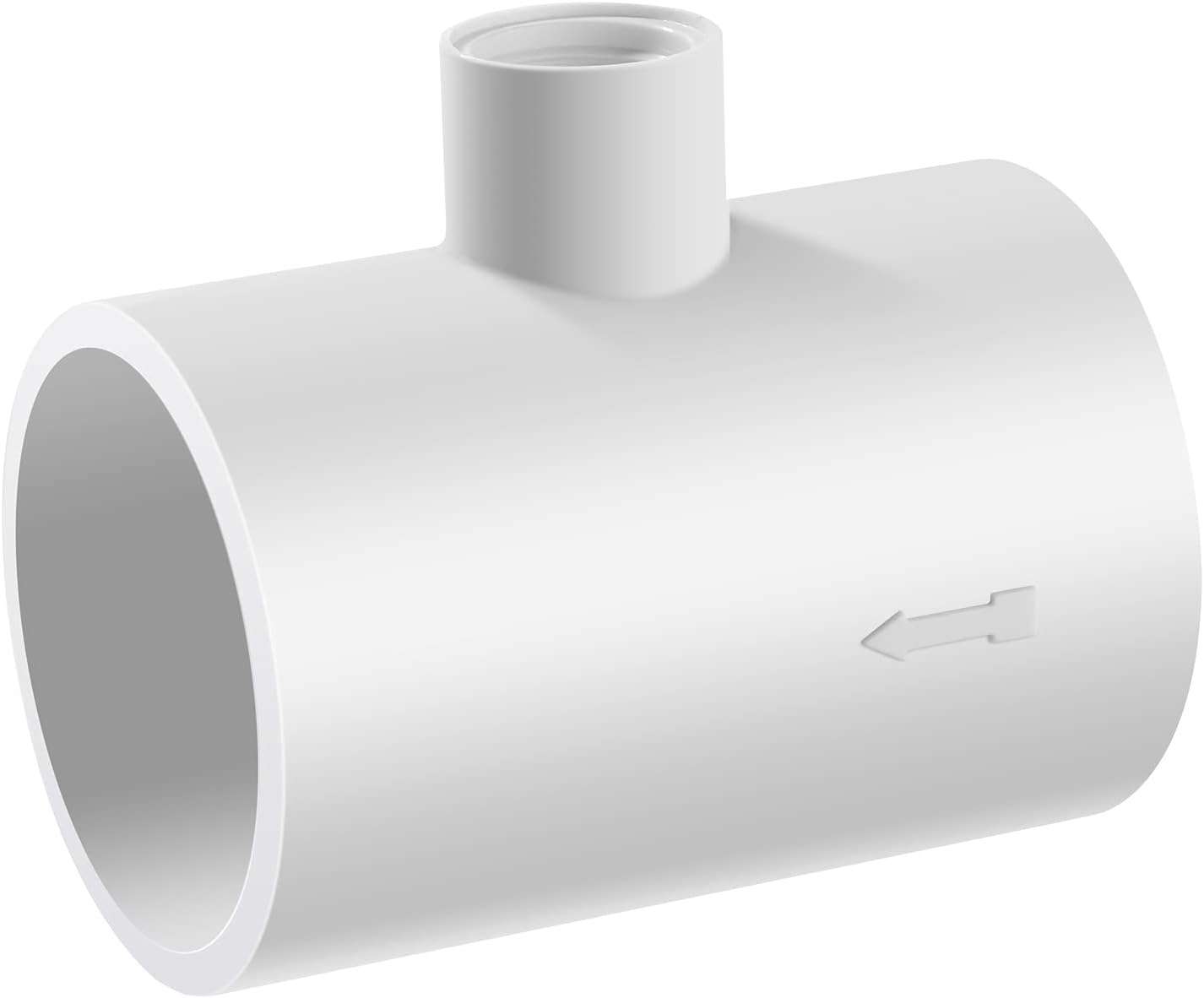

- Tee fitting: Listed for standard 2-inch pool plumbing
- Main use: Detects water flow through the salt chlorination system
- Category: Replacement Kit
Compatibility Notes
This flow sensor with tee is listed for use with compatible Hayward Goldline salt chlorine generator systems. It may fit selected Aqua Rite, Aqua Trol, Mineral Springs, SwimPure, and related Goldline-style systems, but buyers should confirm the exact model before ordering.
If you are comparing full above-ground salt systems, review the Hayward W3AQ-TROL-RJ-TL AquaTrol Salt Chlorination System to understand return jet fitting compatibility.
For hose or pipe fitting setups, compare your current system with the Hayward W3AQ-TROL-HP-TL AquaTrol Salt Chlorination System before choosing replacement parts.
Buyers using the white AquaTrol system version can also check the Hayward W3AQ-TROL-HP AquaTrol Above-Ground Pool Salt Chlorination System for system family reference.
What This Flow Switch Does
A flow switch helps confirm that water is moving through the salt system before chlorine generation begins. If water flow is too low, blocked, or missing, the sensor helps the system recognize the issue instead of allowing the chlorinator to run under poor flow conditions.
This part is useful when the existing flow switch is damaged, giving incorrect readings, or causing flow-related alerts on a compatible salt chlorine generator.
Installation Guidance
Turn off the pool pump and power to the salt chlorination system before removing the old flow switch. Release pressure from the plumbing line before loosening fittings or cutting into the pipe.
Install the tee in the correct flow direction and make sure the sensor is seated securely. After installation, restart the system and inspect the area for leaks before regular operation.
If you are also servicing the salt cell area, the Hayward GLX-CELL-PIPE Turbo Cell Straight Pipe Placeholder Replacement may help when a Turbo Cell needs to be removed temporarily from the plumbing line.
Maintenance and Troubleshooting
If the system continues to show a flow warning after replacing the sensor, check for low pump speed, clogged filters, closed valves, air in the line, or restricted plumbing before assuming the new sensor is faulty.
Pool owners who are cleaning calcium buildup from a salt cell may also need a cleaning accessory like the Pool Cleaning Stand GLX-CELLSTAND Replacement instead of only replacing the flow switch.
Before You Buy
Confirm your existing flow switch style, tee size, cable connector, and compatible Hayward Goldline system model before ordering. This product is best for buyers who need a replacement flow sensor with tee for a compatible salt chlorination system, not a complete salt chlorine generator.
