Product Details

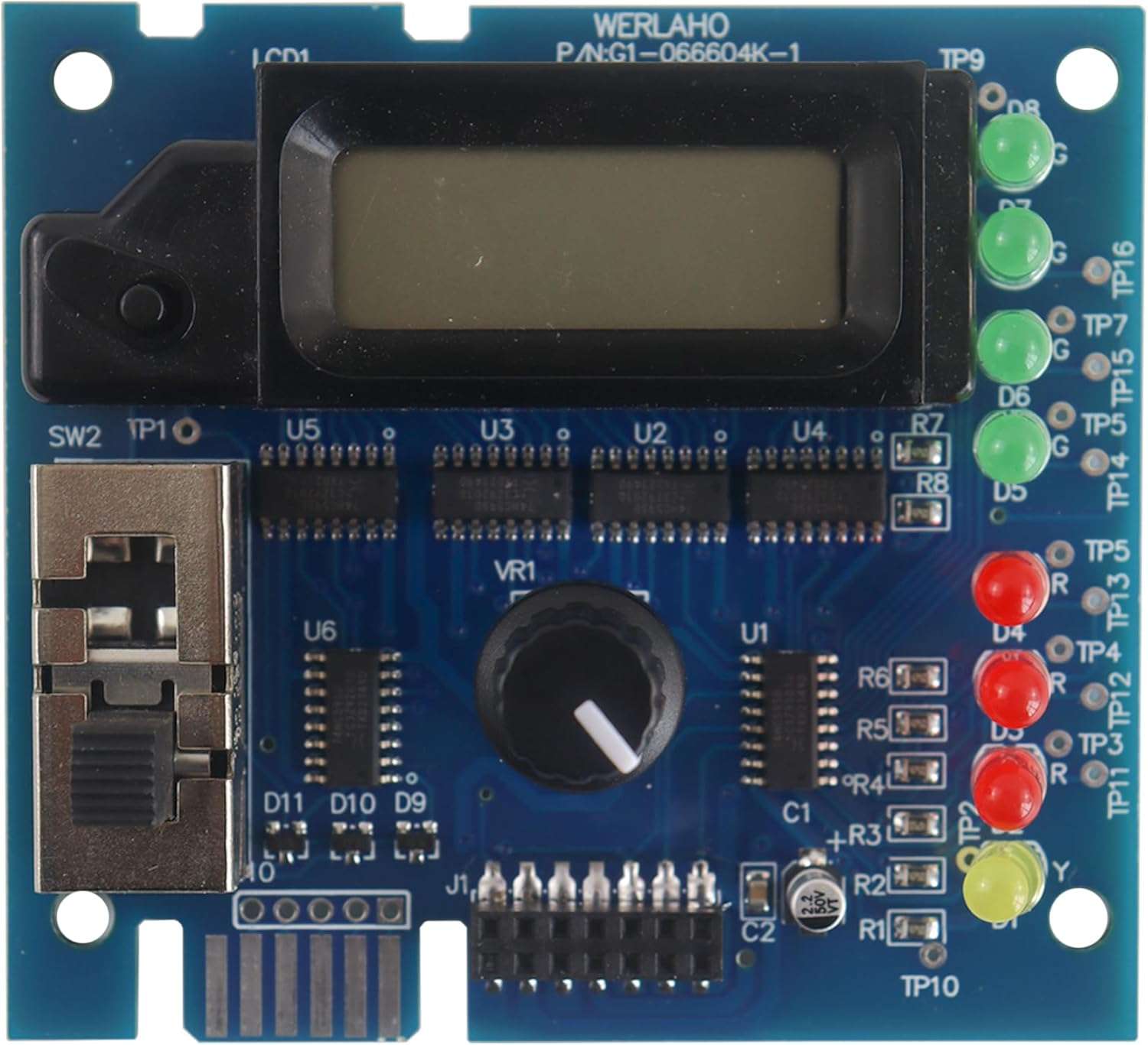

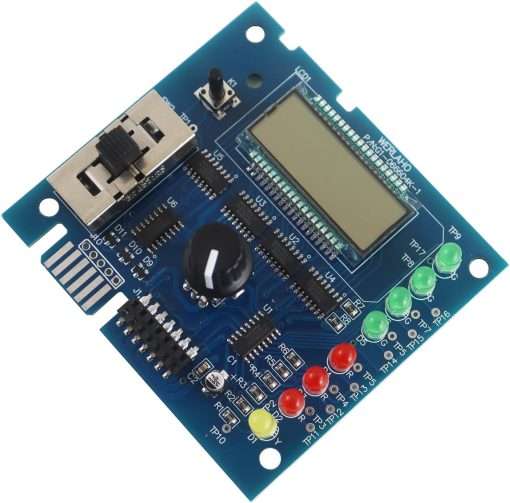

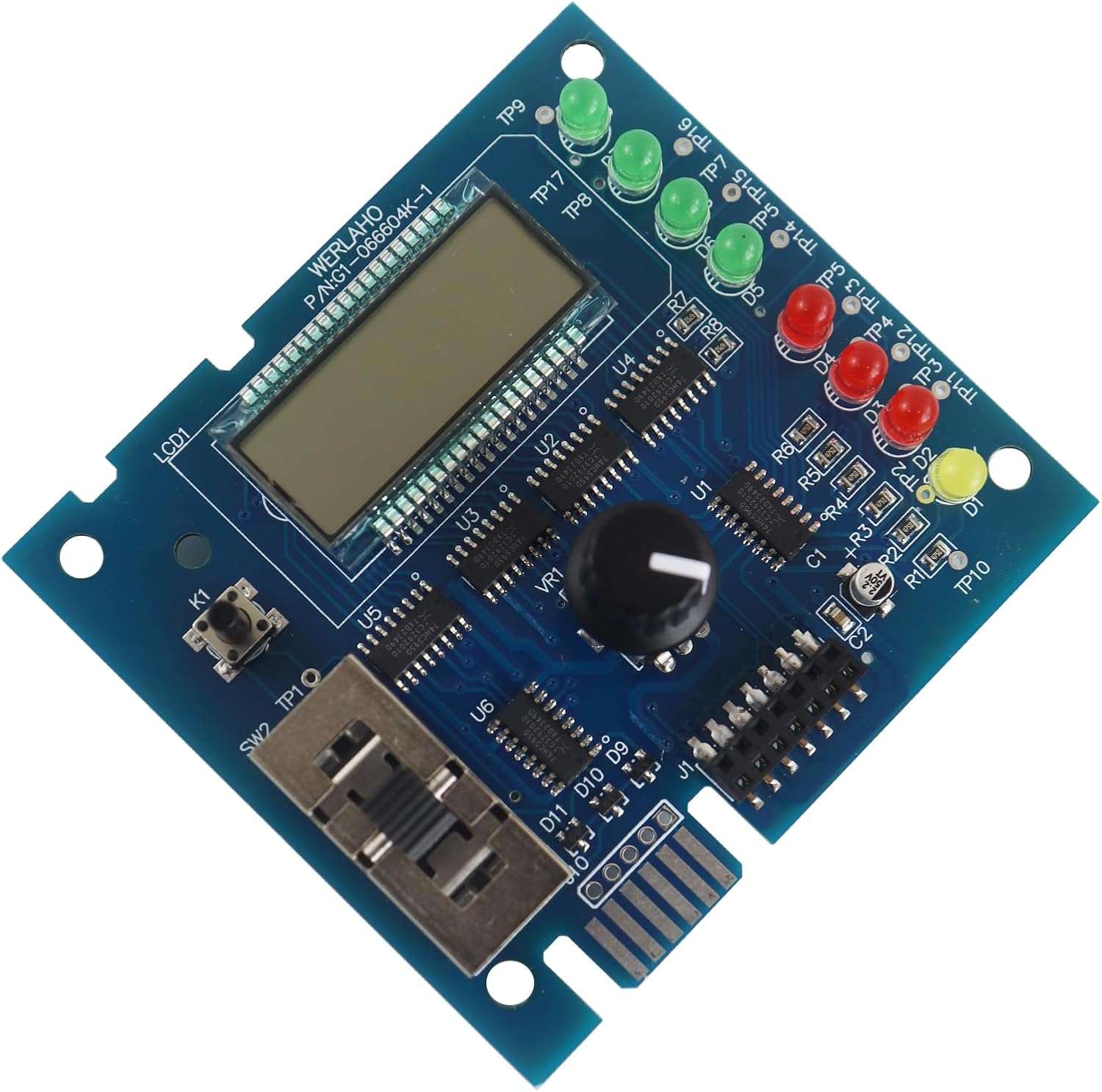

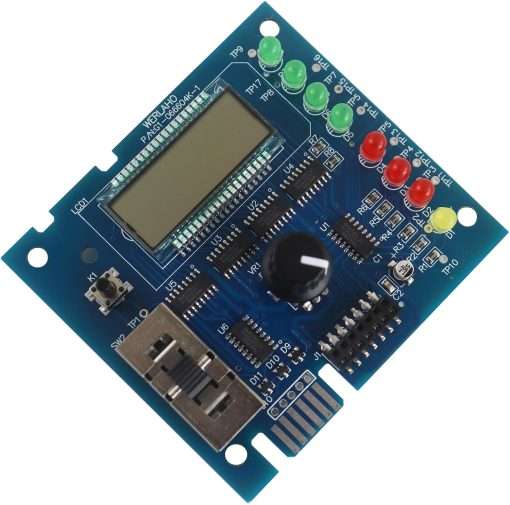

- Product type: display board replacement / PCB display board
- Model number listed: GLX-PCB-DSP
- Compatible systems listed: Hayward Goldline Aqua-Rite and Aqua-Trol salt chlorine generators
- Also listed for: NatureSoft and Mineral Springs systems
- Compatible Aqua-Trol models listed: AQ-TROL-RJ-CUL, AQ-TROL-RJ-X300, AQTROL-RJLS-CUL, and AQTROL-RJ3-CUL

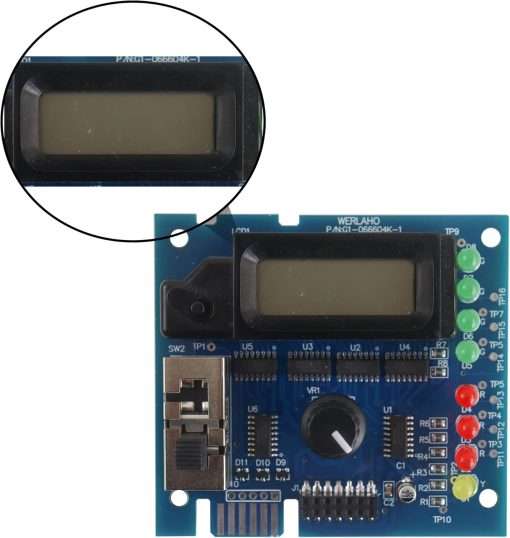

- Display type: LCD screen with control potentiometer

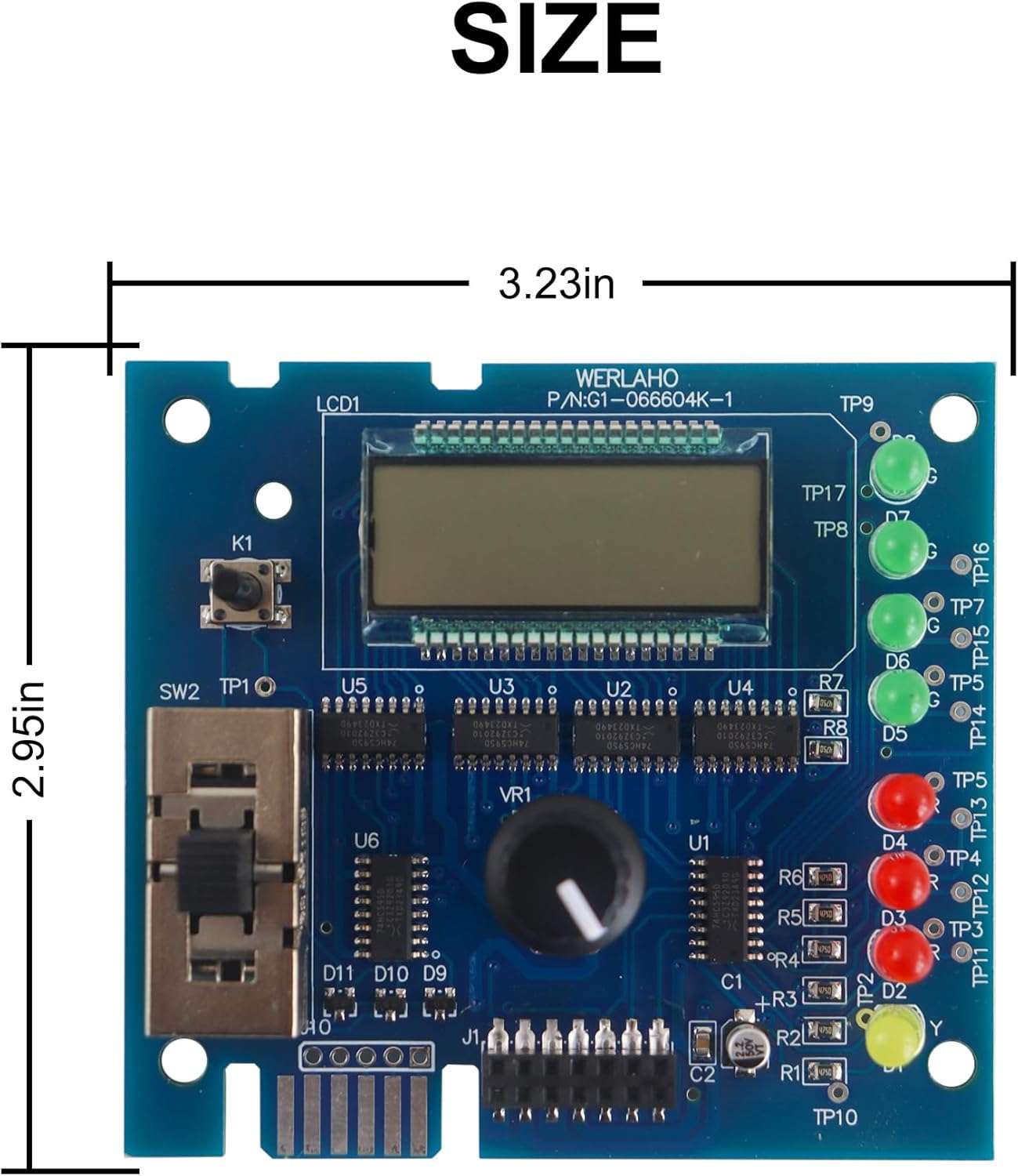

- Product dimensions listed: 5 x 3 x 1.1 inches
- Item weight listed: 2.08 ounces
- Warranty claim shown in title: 1 year warranty
- Best use: replacing a matching failed display board after confirming the main PCB and system power are working correctly
Compatibility Before Ordering
Before buying, open the existing control box and compare the original display board part number, connector style, LCD layout, and mounting holes. The part should match the GLX-PCB-DSP display board style used in compatible Aqua-Rite and Aqua-Trol systems.
If you are repairing an Aqua-Rite system, compare this part with a Hayward GLX PCB DSP Aqua Rite PCB display listing to confirm whether you need the display board only or a different PCB component.
Display Board vs Main Circuit Board
This product should not be confused with the main control PCB. The display board handles the screen and front control interface, while the main PCB controls system power and major operating functions.
If the salt system has no power, burned components, relay issues, or main-board failure, you may need to compare a GLX-PCB-RITE main circuit board instead of replacing only the display board.
Installation Notes
Turn off power at the breaker before opening the salt chlorine generator control box. Remove the old board carefully, note the wire and connector positions, and install the replacement only if the connectors and mounting points match.
Pool equipment electronics can be sensitive to incorrect wiring. If you are not comfortable working inside the control box, use a qualified pool equipment technician or electrician. Do not force connectors, drill new board holes, or modify the board to make it fit.
Troubleshooting Before Replacement
A faulty display board may cause screen or control-interface problems, but similar symptoms can also come from the main PCB, transformer, fuse, wiring, or system power supply. Check the system manual and basic electrical condition before ordering parts.
For related repair searches, buyers may also review an Aqua Rite PCB board category to compare display boards, main boards, and other compatible replacement parts.
Aqua-Trol and Other Listed System Fit
The listing mentions compatibility with select Aqua-Trol systems, NatureSoft, and Mineral Springs systems. These systems can have different versions, so matching the exact board and model is important before installation.
If your repair is for an Aqua-Trol unit, compare this with a display replacement for Hayward Aqua-Trol salt chlorine generators before making a final purchase.
Before Ordering
This display board may be useful when your existing Aqua-Rite or Aqua-Trol display board is damaged, unreadable, or no longer responding correctly. It is best suited for buyers who can confirm the exact part number and control box compatibility before purchase.
You may also check the Amazon product page for current availability, customer questions, product images, and buyer reviews before ordering.
